Stealth Trailers Nomad Toy Hauler Travel Trailer RVs For Sale

Previous
Next
1 of 24

The Nomad toy hauler travel trailers by Stealth Trailers are specifically designed for the outdoor enthusiasts. Each Nomad is available in a variety of lengths depending on your needs, so you can get out there and do more of what you love doing!



The rear ramp door will make unloading easier than ever, plus there is rubberized flooring and tie-downs to keep your toys secure during transport. You'll find a fully-equipped kitchen to prepare meals in each day, versatile sleeping arrangements, and full bath amenities to clean up after a day in the dirt. A 7' 6" interior height allows you to move about comfortably, and you'll find plenty of storage space for your valuables and riding gear.



Answer the call of the wild with a Nomad toy hauler travel trailer by Stealth Trailers today!

  • Nomad 20FK

    Nomad 20FK Floorplan Image

    Stealth Trailers Nomad toy hauler 20FK highlights: 17' Garage Deluxe RV Door ... more about Nomad 20FK

    Specifications

    Sleeps 2
    Length 26 ft 2 in
    Ext Width 8 ft 6 in
    Ext Height 9 ft 9 in
    Int Height 7 ft 6 in
    Exterior Color Polar White, Victory Red, Metallic Charcoal, Metallic Pewter, Matte Black, Gloss Black
    Hitch Weight 815 lbs
    Gross Weight 9990 lbs
    Dry Weight 5435 lbs
    Cargo Weight 4555 lbs
    Fresh Water Capacity 46 gals
    Grey Water Capacity 43 gals
    Black Water Capacity 43 gals
    Tire Size ST225/75R15 LRD
    Cooktop Burners 2
    Shower Size 24" x 36"
    Axle Weight 5200 lbs
    Garage Size 15 ft
    LP Tank Capacity 20 lbs
    Water Heater Capacity 6 gal
    Water Heater Type DSI LP Gas/Electric
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Standard
    Electrical Service 30 amp
  • Nomad 22FK

    Nomad 22FK Floorplan Image

    Stealth Trailers Nomad toy hauler 22FK highlights: 17' Garage Deluxe RV Door ... more about Nomad 22FK

    Specifications

    Sleeps 2
    Length 28 ft 2 in
    Ext Width 8 ft 6 in
    Ext Height 9 ft 9 in
    Int Height 7 ft 6 in
    Exterior Color Polar White, Victory Red, Metallic Charcoal, Metallic Pewter, Matte Black, Gloss Black
    Hitch Weight 851 lbs
    Gross Weight 9990 lbs
    Dry Weight 5675 lbs
    Cargo Weight 4315 lbs
    Fresh Water Capacity 46 gals
    Grey Water Capacity 43 gals
    Black Water Capacity 43 gals
    Tire Size ST225/75R15 LRD
    Cooktop Burners 2
    Shower Size 24" x 36"
    Axle Weight 5200 lbs
    Garage Size 17 ft
    LP Tank Capacity 20 lbs
    Water Heater Capacity 6 gal
    Water Heater Type DSI LP Gas/Electric
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Standard
    Electrical Service 30 amp
  • Nomad 18FK

    Nomad 18FK Floorplan Image

    Stealth Trailers Nomad toy hauler 18FK highlights: 17' Garage Deluxe RV Door ... more about Nomad 18FK

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 2
    Length 24 ft 2 in
    Ext Width 8 ft 6 in
    Ext Height 9 ft 9 in
    Int Height 7 ft 6 in
    Exterior Color Polar White, Victory Red, Metallic Charcoal, Metallic Pewter, Matte Black, Gloss Black
    Hitch Weight 779 lbs
    Gross Weight 9990 lbs
    Dry Weight 5195 lbs
    Cargo Weight 4795 lbs
    Fresh Water Capacity 46 gals
    Grey Water Capacity 43 gals
    Black Water Capacity 43 gals
    Tire Size ST225/75R15 LRD
    Cooktop Burners 2
    Shower Size 24" x 36"
    Axle Weight 5200 lbs
    Garage Size 13 ft
    LP Tank Capacity 20 lbs
    Water Heater Capacity 6 gal
    Water Heater Type DSI LP Gas/Electric
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Standard
    Electrical Service 30 amp
  • Nomad 24FK

    Nomad 24FK Floorplan Image

    Stealth Trailers Nomad toy hauler 24FK highlights: 17' Garage Deluxe RV Door ... more about Nomad 24FK

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 2
    Length 30 ft 2 in
    Ext Width 8 ft 6 in
    Ext Height 9 ft 11 in
    Int Height 7 ft 6 in
    Exterior Color Polar White, Victory Red, Metallic Charcoal, Metallic Pewter, Matte Black, Gloss Black
    Hitch Weight 887 lbs
    Gross Weight 12000 lbs
    Dry Weight 5915 lbs
    Cargo Weight 6085 lbs
    Fresh Water Capacity 46 gals
    Grey Water Capacity 43 gals
    Black Water Capacity 43 gals
    Tire Size ST225/75R15 LRD
    Cooktop Burners 2
    Shower Size 24" x 36"
    Axle Weight 5200 lbs
    Garage Size 19 ft
    LP Tank Capacity 20 lbs
    Water Heater Capacity 6 gal
    Water Heater Type DSI LP Gas/Electric
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Standard
    Electrical Service 30 amp
  • Nomad 26FB

    Nomad 26FB Floorplan Image

    Stealth Trailers Nomad toy hauler 26FB highlights: 24" x 36" Shower Microwave ... more about Nomad 26FB

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 2
    Length 32 ft 2 in
    Ext Width 8 ft 6 in
    Ext Height 9 ft 11 in
    Int Height 7 ft 6 in
    Exterior Color Polar White, Victory Red, Metallic Charcoal, Metallic Pewter, Matte Black, Gloss Black
    Hitch Weight 996 lbs
    Gross Weight 12000 lbs
    Dry Weight 6640 lbs
    Cargo Weight 5360 lbs
    Fresh Water Capacity 53 gals
    Grey Water Capacity 43 gals
    Black Water Capacity 43 gals
    Tire Size ST235/80R16 LRE
    Cooktop Burners 2
    Shower Size 24" x 36"
    Axle Weight 6000 lbs
    Garage Size 15 ft
    LP Tank Capacity 20 lbs
    Water Heater Capacity 6 gal
    Water Heater Type DSI LP Gas/Electric
    Axle Count 2
    Number of LP Tanks 3
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

Nomad Features:

Standard Features



Weld

  • 7' Interior Height
  • 2" x 6" Tube Steel Main Rails (All Models Under 26')
  • 2" x 8" Tube Steel Main Rails
  • 16" O/C Floor C-Channel Crossmembers (Under 26' FK Models)
  • 16" O/C Floor Steel Tube Crossmembers **
  • 16" O/C Steel Tube Wall Studs
  • 24" O/C Tube Steel Roof Bows
  • 18" Extended Triple Tube A-frame
  • Lippert Torsion Axles
  • 40" Spread Axles (All Models over 22')
  • 5200# Axles w/Radial Tires on TA3
  • 6000# Axles w/Radial Tires on TA4
  • 7000# Axles w/Radial Tires on TA5
  • Electric Brakes
  • 2-5/16" A-Frame Coupler
  • 4,000# Rated Rear Ramp Door w/Flap
  • 5,000# Electric Tongue Jack
  • (2)Roof Vents in Living/Garage area
  • Prep & Wired for A/C
  • 12V Roof Vent in Bathroom
  • Painted Tongue/Rear Sill Black
  • 36" Slant Wedge
  • Double Fold Out RV Step
  • (1) Pair Rear Stab Jacks

Plumbing

  • 46 Gallon Fresh Water Tank (FK Models)
  • 53 Gallon Fresh Water Tanks (DB, FB, QB Models)
  • 43 Gallon Waste Holding Tank (FK Models)
  • (2) 43 Gallon Waste Holding Tanks (1 gray, 1 Black; DB, FB, QB Models)
  • Dual 20lb LP Bottles on A-Frame with Cover
  • 6 Gallon DSI LP Gas / Electric Water Heater
  • 12V Water Pump
  • City/Gravity Water Fill Hook Up
  • Outside Shower

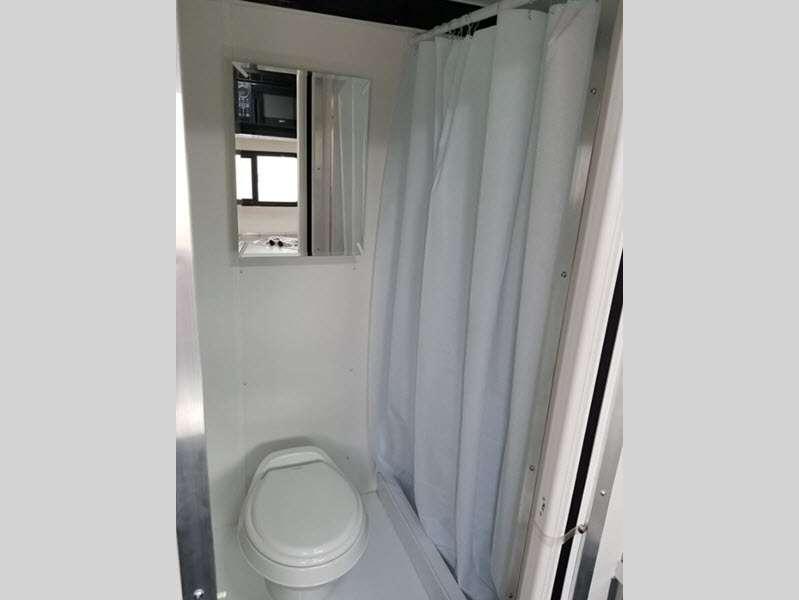

  • RV Toilet
  • Medicine Cabinet
  • Robe Hooks
  • 24" x 36" Shower w/Shower Curtain & Surround (FK, FB, QB Models)
  • 32" x 32" Radius Shower with Door and Surround (DB Model)
  • Drop-In Cook Top
  • Large Single Bowl Kitchen Sink
  • Refrigerator

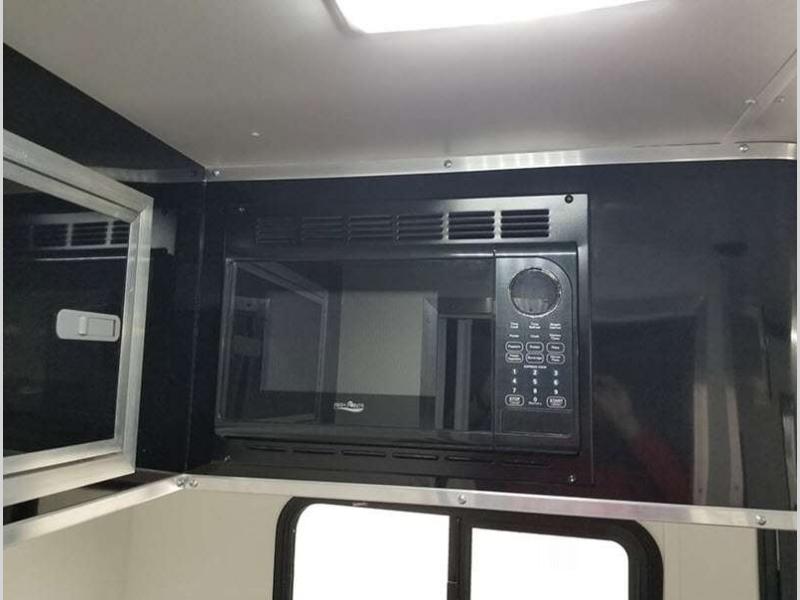

  • Microwave Oven
  • Tank and Battery Monitor Panel

Doors & Windows

  • 26"W x 78"H Radius Corner Deluxe RV Door w/Window & Screen
  • Aluminum Door Holdback
  • All Black Zinc Coated Door Hardware
  • 24"W x 72"H Door w/Barlock in Front Storage
  • 30" x 15" Window in Kitchen area
  • 30" x 30" Window in Living/Garage area
  • 30" x 22" Egress Window
  • Window Coverings in Garage Area

Electrical

  • 7-Way Electrical Plug
  • LED Strip Tail Lights
  • LED Marker Lights
  • 12V Deluxe LED Lighting
  • 45 Amp RV Power Center w/12V Converter
  • 30 Amp Motorbase plug
  • Detachable Twistlock Power Cord
  • Battery Box Only (Battery not included)
  • 110V GFI Receptacle in Kitchen area **
  • (2) 110V Receptacles with USB Ports
  • 110V Receptacle in Garage area **
  • 110V Exterior GFI Receptacle
  • 35K BTU Furnace **
  • TV Prep Package (Includes: Coax Cable Outlets – Interior & Exterior, Omni-directional TV Antenna (UHF/VHF)
  • 12V 40" LED cove lights in Living/Garage Area **
  • Smoke & CO Detector
  • Fire Extinguisher

Plywood

  • 3/4" Drymax Floor
  • ATP Rubber Floor Covering (not in wedge)
  • 3/8" White Vinyl Walls
  • White Vinyl Ceiling Liner w/Black Cove Molding
  • Black Kitchen Base Cabinet w/Aluminum C-top **
  • Black Kitchen Overhead Cabinet
  • 5000# Recessed D-Rings (4, 6 or 8 Depending on Model)
  • Large Front Storage Area w/shelf

Metal

  • .040" Screwless Exterior Aluminum

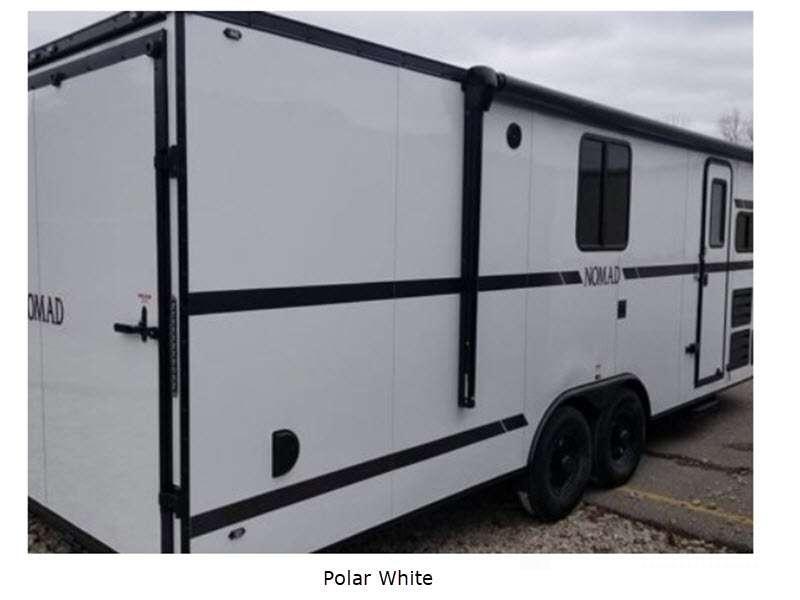

  • Standard Colors: Polar White, Metallic Pewter, Black, Matte Black, Indigo Blue, Victory Red, Matte Red, Metallic Charcoal
  • 3" Heavy Duty Flat Top Trim
  • 1-1/2" Flat Bottom Trim
  • All Black Exterior Trim
  • ATP Fenders
  • 24" Tall Slanted Embossed Stone guard
  • 6" Barrier Tape
  • (1) Pair Black Aluminum Directional Sidewall Vents **

Roof

  • Seamless Aluminum Flat Top Roof
  • LED Marker Lights
  • Rear Flare w/(2) Loading Lights **

Available Options

  • Platinum Nomad Package Includes:
    • Deluxe Stereo Package with Boss-Touchscreen Bluetooth AM/FM/CD/DVD/USB/MP3/WMA Capable Stereo, and (4) Hi-Output Weatherproof Speakers- (2) Interior & (2) Exterior
    • 43" TV with Swivel Bracket
    • Rear Hide-A-Screen
    • Solar Prep
  • 68" Wall Mount Sofa
  • Aluminum Star Wheels (5.2k, 6k, & 7k Axles)
  • Black Aluminum Rims, Lug Nuts, & Center Cap for 6-lug 15" tires (5.2k axles)
  • Black Aluminum Rims, Lug Nuts, & Center Cap for 8-lug 16" tires (6k & 7k axles)
  • Matching Spare Tires
  • Power Awnings w/Hardware & LED Light Kit:
    • 16ft
    • 18ft
    • 20ft
  • Beavertail
  • Black ATP Transition Flap
  • Two-Tone Exterior with Divider
  • Single or Double HappiJac Bed Lift System (includes mattress)
  • (2) 55" Sofas for HappiJac System (Compatible with Double Lift System Only)
  • 15,000 BTU Suburban Roof Air Conditioner
  • 2nd 15,000 BTU Suburban Air Conditioner (50 Amp Service Required)
  • E-Track Recessed in Floor – (3) 10ft or 20ft sections
  • 54"x 60" Escape Door

Please see us for a complete list of features and available options.

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to Covid19 supply chain issues, some features and options shown may be temporarily substituted or removed.

Manu-Facts:

Stealth Trailers

Stealth is the value and volume leader in enclosed cargo trailers for the Midwest*, and soon to be the entire country! Value is an overused word, but when you’re spending hard-earned money, value is at the top of the list. Our definition of value includes both the monetary and the material worth of something. Stealth, being a volume leader, is ranked high for good reasons: we deliver the most trailer you can get for the money. Over the past decade, we’ve been committed to development and new innovation, smart use of materials, clear direction and to great products sold through an amazing dealer network. The Titan, Predator, Liberty and Raptor models have all been game changers in design when they were launched, and continue to be today. Other great models and plans are on the horizon. This winning combination of good looks, user-friendly features and all at the right price has put Stealth on the map to stay.



If you are looking for an RV, Stealth Trailers now has you covered as well bringing you both a toy hauler and off-road travel trailer for those adventures where you not only need hauling space for your toys and gear, but living space as well.  The newest to the line-up even makes going off-grid  simple by allowing you to reach those remote destinations where you can enjoy all that nature has to offer where traditional RV Trailers just can't go!



* According to Statistical Surveys Inc. Midwest past 12 months.
